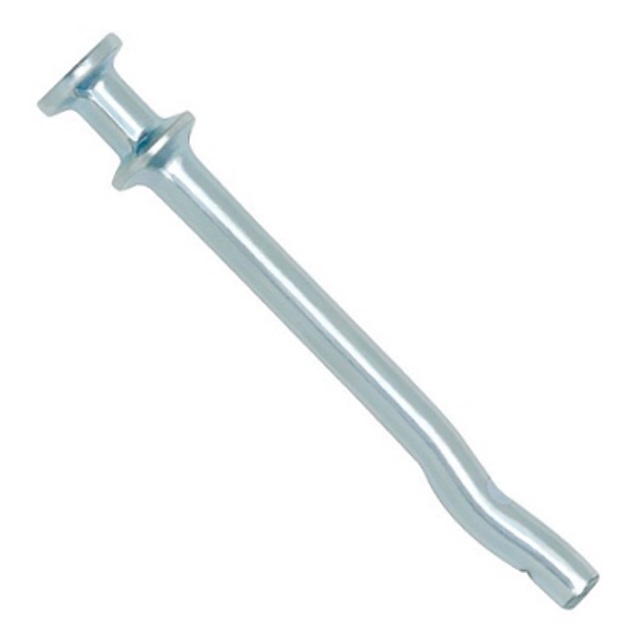

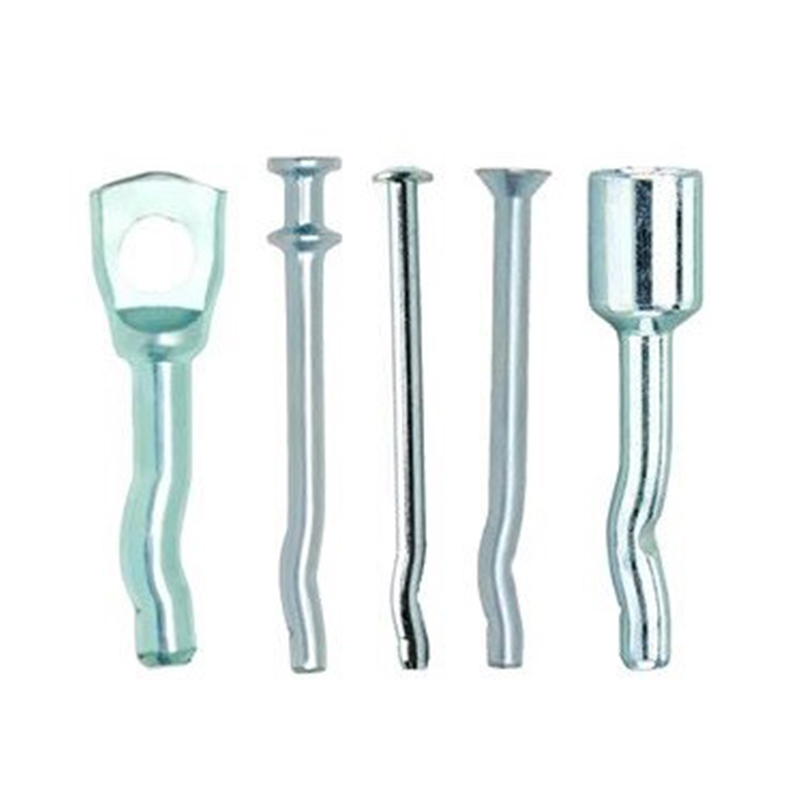

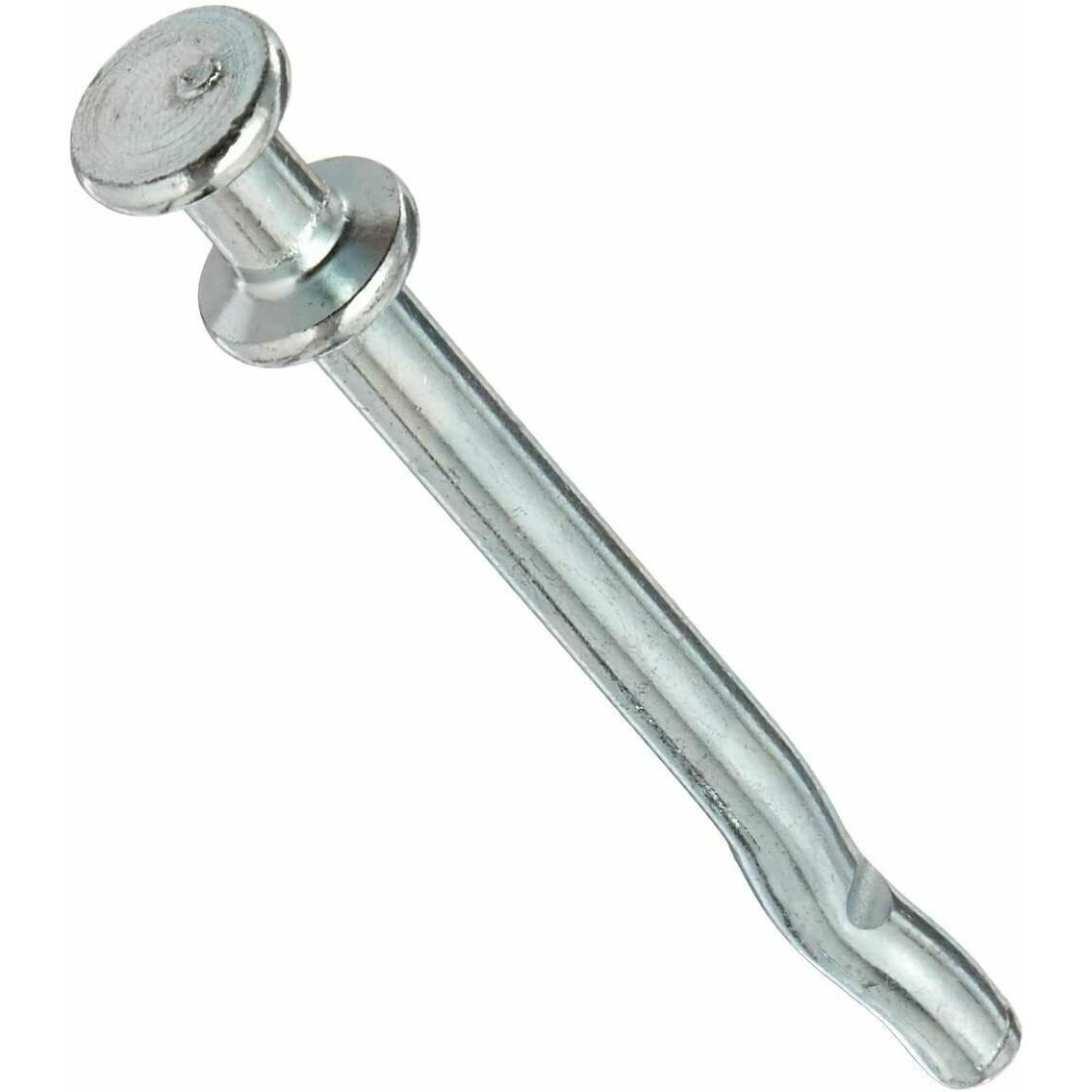

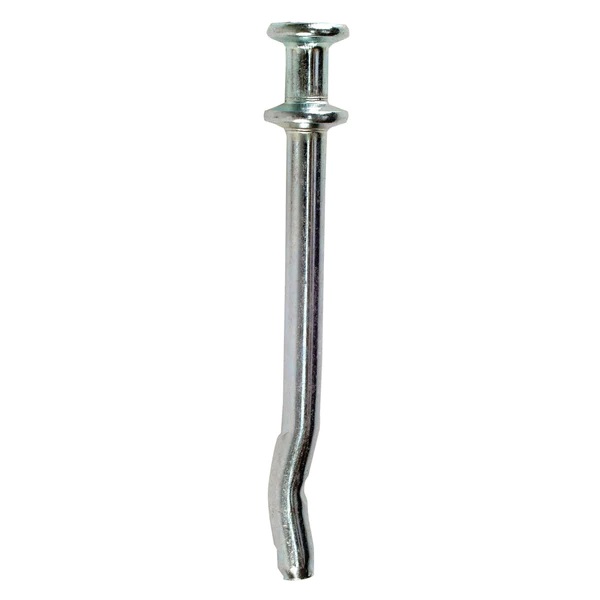

The Spike Forming Pin Anchor is a one-piece, vibration-resistant anchor for use in concrete block or stone where a tamperproof application is required. Several head styles, including tamperproof versions, and anchor materials are available. The Spike anchor is formed with an “s” shaped configuration at the working end of the anchor to create an expansion mechanism. Since the anchor is pre-formed, there is no secondary tightening operation required which greatly reduces the overall cost of an anchor installation.
| Item | 1/4" X 2-3/4" Forming Spike Pin Anchor | |
| Model number | Pin anchor | |
| Color | Silver | |
| Finish | Zinc | |
| System of measurement | Metric, inch | |
| Material | Steel, carbon steel | |
| Standard | DIN | |
| Drill diameter | 1/4" | |
| Length | 2-3/4" | |
| Min. embedment | 1-1/4" | |
| Certificate | ISO9001-2008 | |
| Customization | Provided | |
| Single packaging size | 25*25*16cm | |
| Singe gross weight | 25kg | |
| Sample | Free | |
| Packing | Carton+plastic bags | |
| (1) Small box packging | ||
| (2) 25-30kgs/ctn in bulk, 36-48cartons/pallet | ||
| (3) Assortment in poly bag or plastic box | ||
| Delivery time | Quantity | Delivery time |
| 1-1000pcs | 3 days | |
| 1001-5000pcs | 7 days | |
| 5001-10000pcs | 9 days | |
| ＞10000pcs | To be negotiated | |
