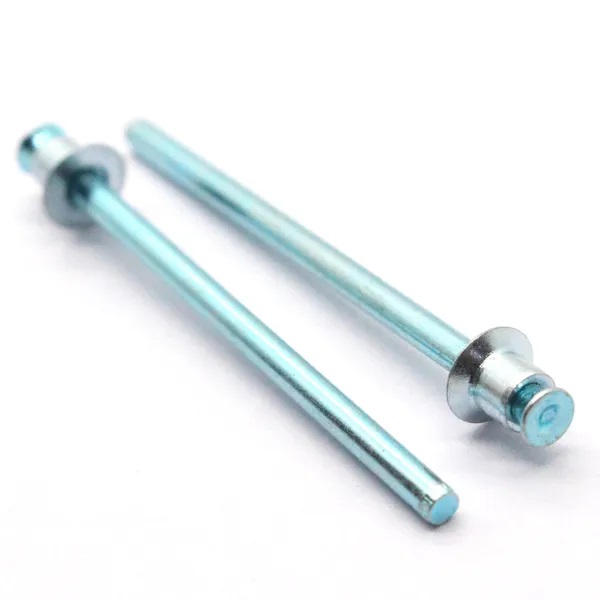

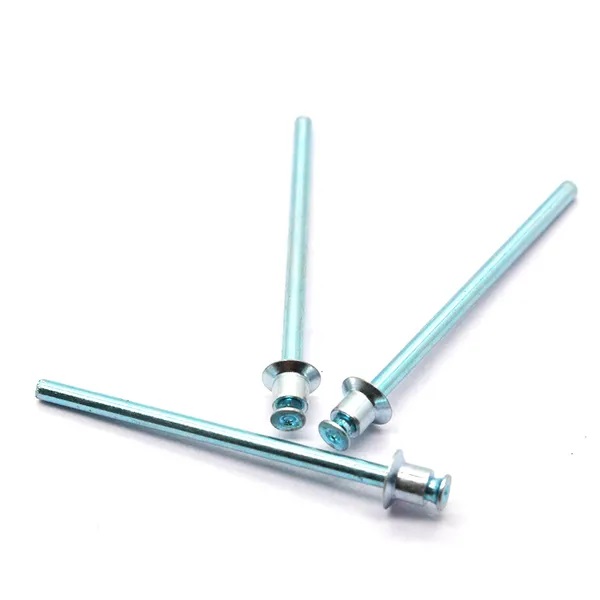

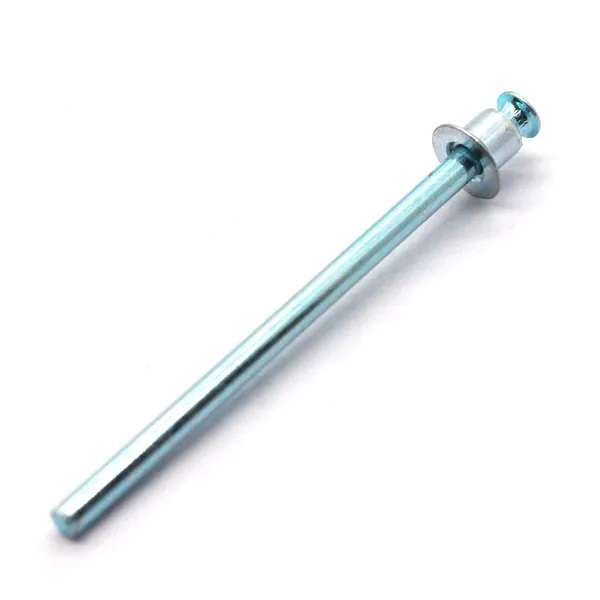

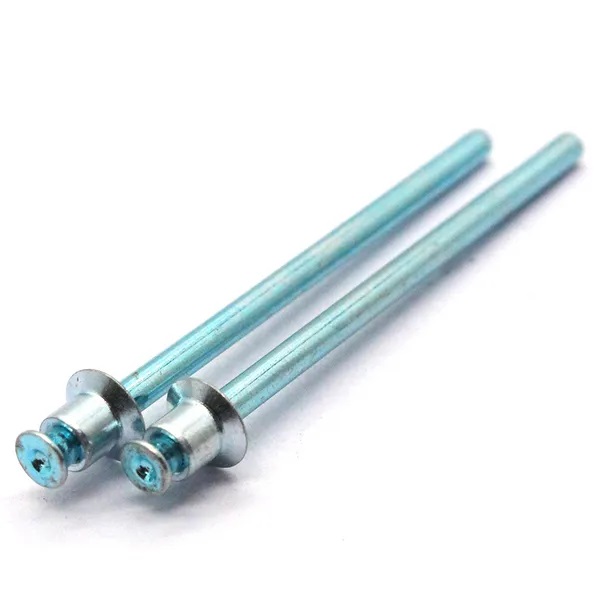

Zhuocheng Pull-Thru (PT) Rivets Countersunk Head Steel Zinc Plated

Pull-Thru rivet is a steel countersunk blind fastener designed to set surface flush on both sides of an application. During setting,the mandrel head never breaks away from the mandrel. It remains integral with the mandrel, while extruding completely through the rivet body and exiting into the setting tool. This unique process provides a consistent tight radial set within the working grip range of the rivet,improves rivet tool access and eliminates the possibility of loose mandrel heads in the application.

Features and Benefits

1.Flush set on both sides for double countersunk materials

2.No mandrel heads remain anywhere in application

3.Consistent clamp force

4.Tight radial set provides increased structural rigidity

5.High speed automation

SEND INQUIRY NOW

Material:: Steel, Steel

Size:: 2.4-6.4MM,3/32-1/4

MOQ:: 1000PCS

Package type:: 25kg/ctn in bulk, 36-48cartons/pallet

Delivery date:: 3-5days

SEND INQUIRY NOW

DESCRIPTION

Item	Pull-Thru Countersunk Head Rivets
Finish	Blue Zinc plated, Blue zinc plated
System of measurement	Metric,inch
Application	the electronics industry
Material	(1)RIVET BODY :STEEL; (2)MANDREL:STEEL.
Standard	DIN
Size	DIA:2.4-6.4MM,3/32-1/4
Length	4-40MM 5/32-1 5/8
Certificate	ISO9001-2008
Customization	Provided
Sample	Sample is free, express cost negotiate
Packing	Bulk in carton+export pallet
	(1)Small box packging
	(2)25-30kgs/ctn in bulk, 36-48cartons/pallet
	(3)Assortment in poly bag or plastic box
Delivery time	Quantity	Delivery time
	1-1000pcs	3 days
	1001-5000pcs	7 days
	5001-10000pcs	9 days
	＞10000pcs	To be negotiated
