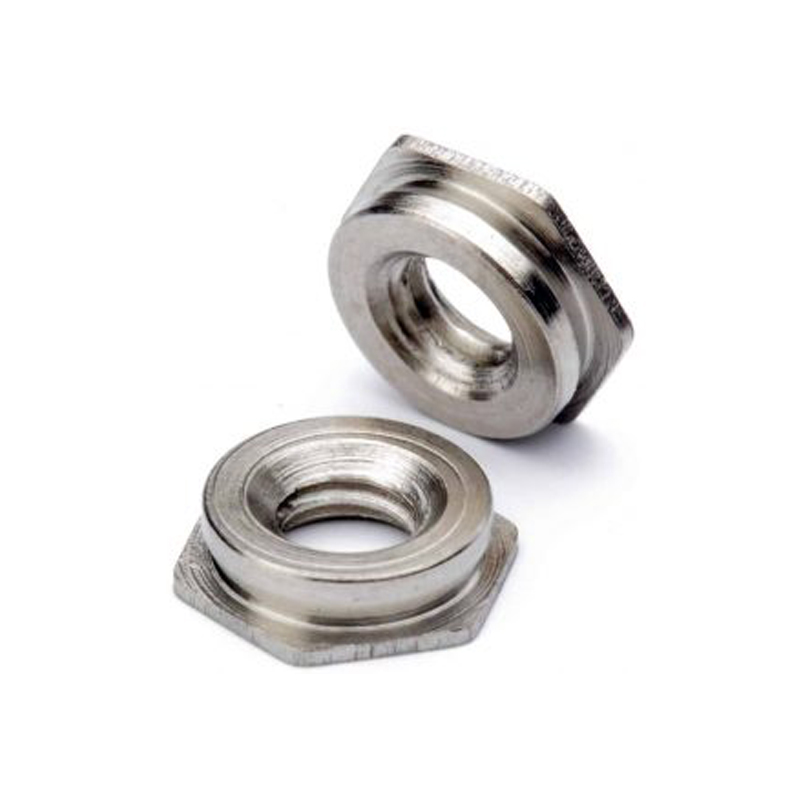

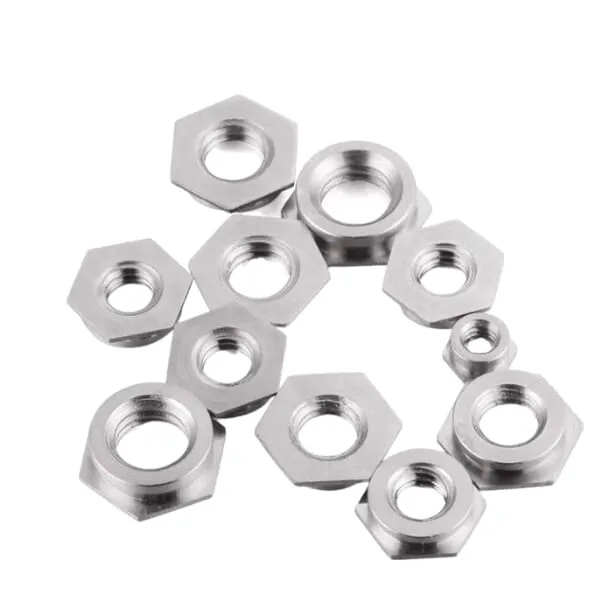

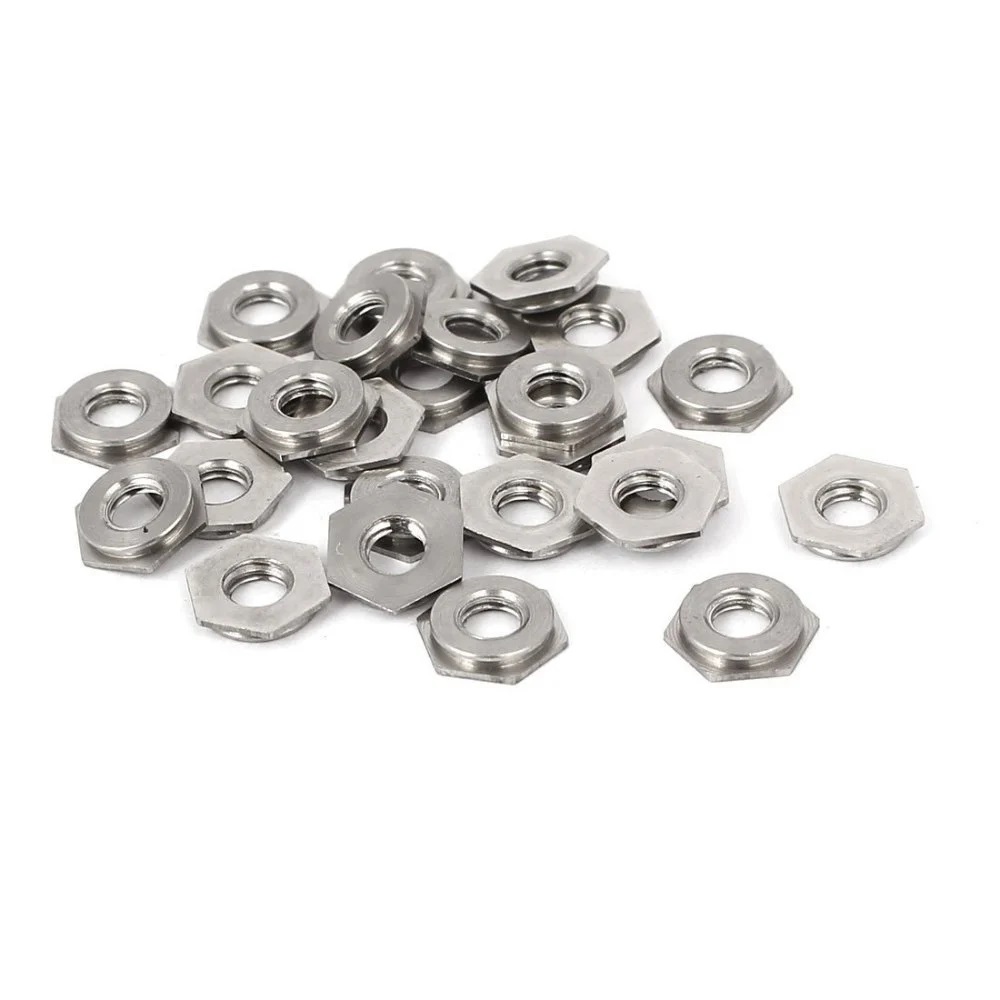

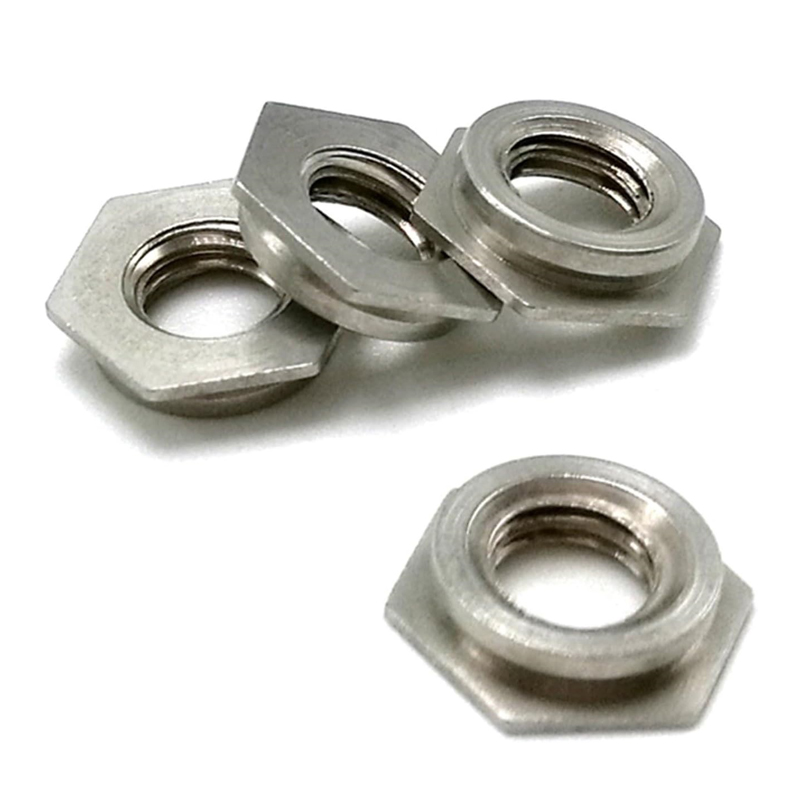

Zhuocheng Stainless Steel Hex Head M2 M3 M4 M5 M6 F Self Clinching Flush Nuts

If you have a need for an industrial fastener that, after installation, will be completely flush with its surrounding surface, then the self-clinching flush nut should be your fastener of choice.

This type of insert nuts for flush insertion on both sides are flush with the top and bottom of the sheet metal.

These fasteners are ideal for applications where a thin sheet requires load-bearing threads but still must remain smooth, with no protrusions on either surface. This can provide strong threads in places which would be inaccessible for installation after chassis are formed.

Adopting a special proven clinch feature, this fastener has excellent torque-out and push-out characteristics whilst providing a flush finish on both sides of the panel. The hexagonal head ensures high axial and torsional strength.

Like all self clinching fasteners they are installed using a parallel squeezing action, so require access to both sides of the panel.
