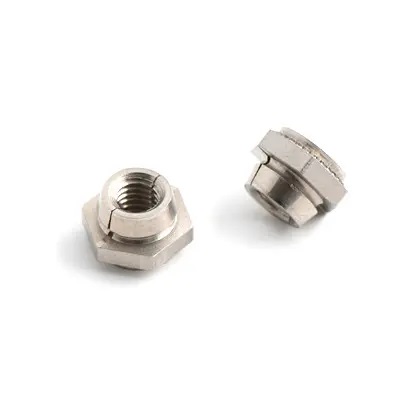

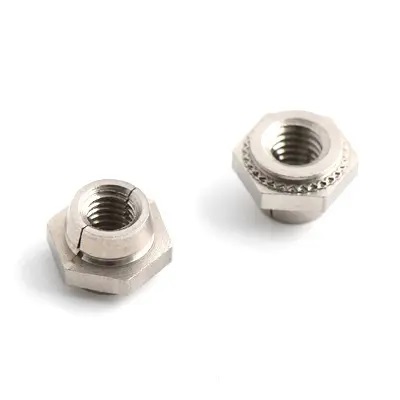

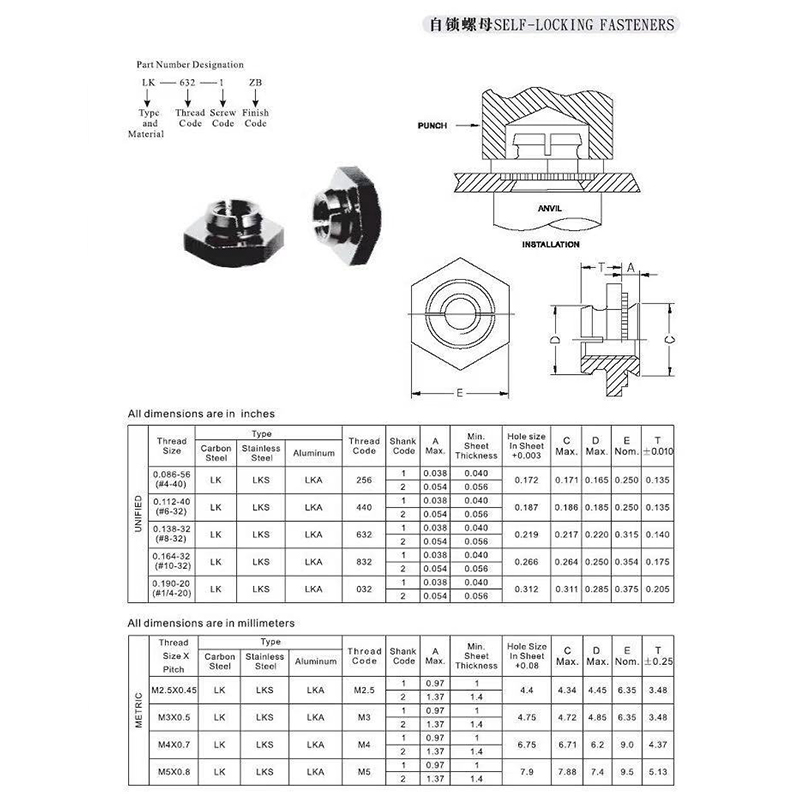

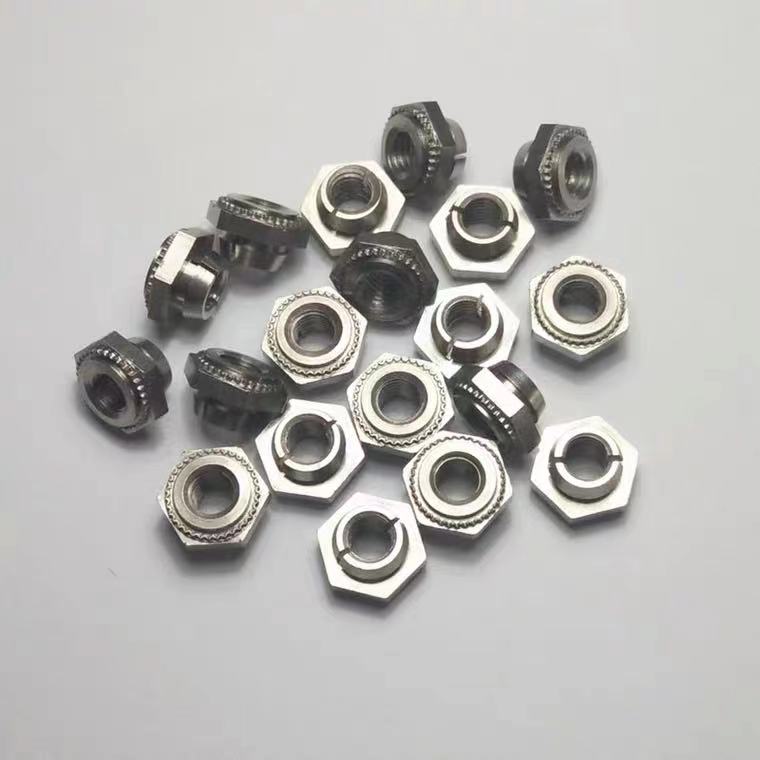

Self-clinching nuts are installed by placing them in properly sized holes in sheets and applying a parallel squeezing force to the head of the nut. The sheet metal surrounding the head cold flows into an undercut thereby making the fastener an integral part of the sheet. A serrated clinching ring prevents the fastener from rotating after installation.
Provide load-bearing threads in thin sheets with high pushout and torque-out resistance.
System of measurement | Metric,inch | |||||||
Material | SS304，SS316，1008,35# steel,35K etc. | |||||||
Size | M3-M12,6#-3/8" | |||||||
Surface | Plain color,zinc plated,nickel plated | |||||||
Certificate | ISO9001-2008 | |||||||
Customization | Provided | |||||||
Carton size | 25*25*16cm | |||||||
G.W/carton | About 25kg | |||||||
Sample | Sample is free,express cost negotiate | |||||||
Sample delivery time | 3-5days | |||||||
Packing | Bulk in carton+export pallet | |||||||
(1)Small box packging | ||||||||
(2)25-30kgs/ctn in bulk, 36-48cartons/pallet | ||||||||
(3)Assortment in poly bag or plastic box | ||||||||
Delivery time | Quantity | Delivery time | ||||||
1-1000pcs | 3 days | |||||||
1001-5000pcs | 7 days | |||||||
5001-10000pcs | 9 days | |||||||
＞10000pcs | To be negotiated | |||||||
Take advantage of our unrivaled knowledge and experience, we offer you the best customization service.
