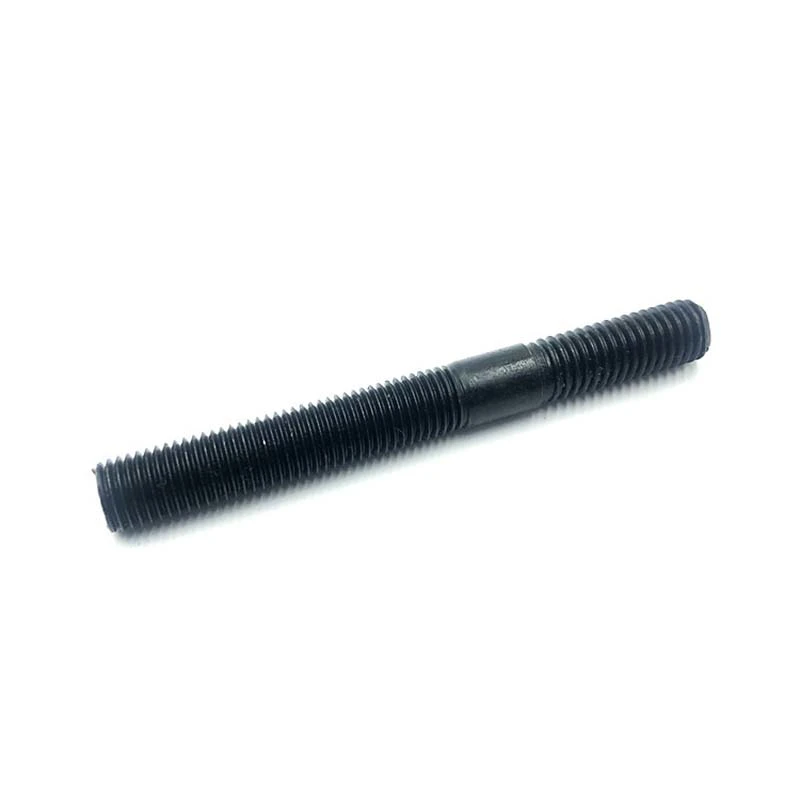

Zhuocheng Unequal length studs

Stud Bolts are externally threaded fasteners without a head, used with 2 nuts on either side, substituting a usual "bolt & nut" assembly. Stud bolts are prominently used in flange connections. Stud Bolts can be manufactured and supplied in metric and imperial sizes with variety of screw thread profile. Some of the common thread profile for stud bolts are ISO Metric, UNC, UNF, UN, ACME. ANSI, ASME, DIN, ISO, BS & IS standards specifies many dimensional standards for Stud Bolts among which ANSI/ASME B16.5, DIN 976, DIN 2510.

Types:-

1. Continuous Threaded Stud Bolts (Fully Threaded Studs without Chamfered Ends):-

Stud Bolts with uniform threads over the length are termed as continuous thread stud bolts. This type usually does not carry a chamfered end.

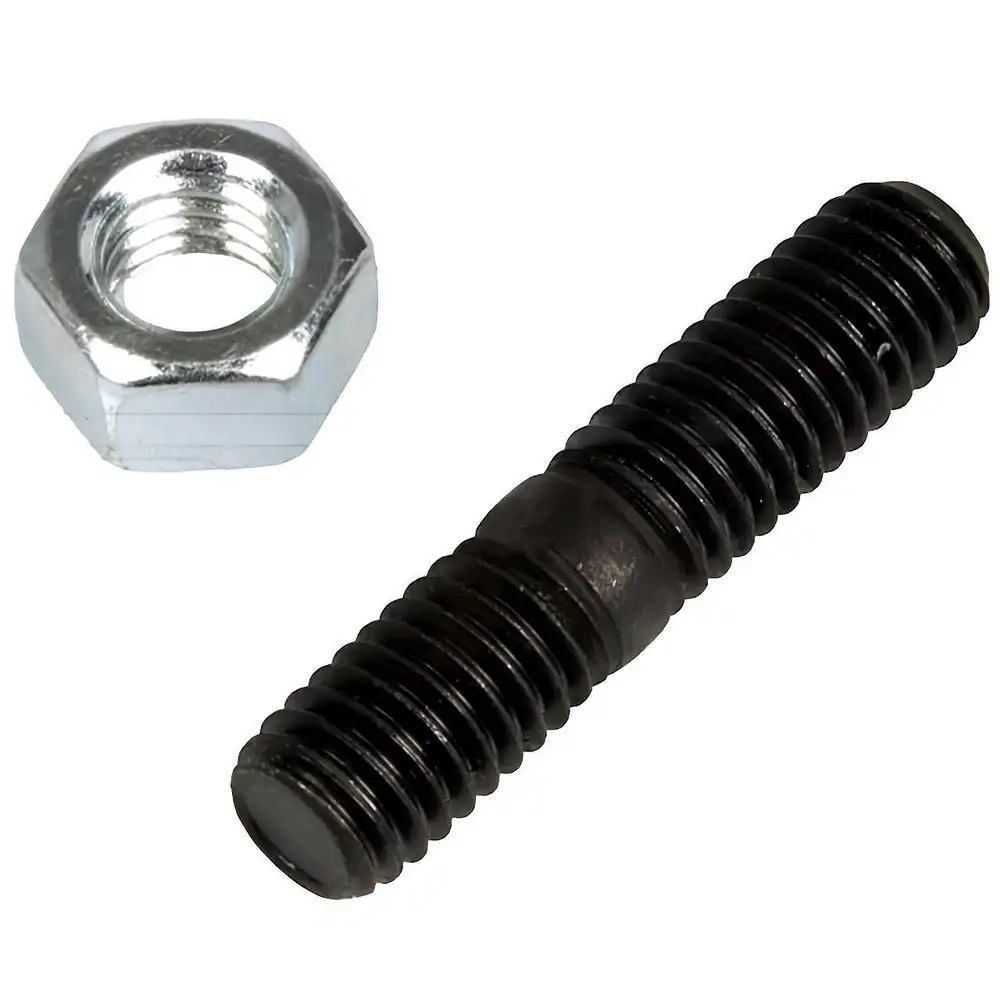

2. Tap End Stud Bolts:-

Stud Bolts with unequal length of threads at extreme ends with non-threaded center.

3. Double End Stud Bolts:-

Stud Bolts with equal thread lengths at either end with non-threaded center.
