Shackle is one kind of rigging. The usual shackles in the domestic market are divided into three categories: national standard, American Standard and Japanese standard; American standard is the most commonly used one, which is widely used because of its small size and large bearing weight. Compared with our national standard shackles and Japanese shackles, American Standard shackles have smaller volume, lighter weight and higher safety factor.
American Crosby shackles and cross pins are made of 40Cr, but most of our domestic American Standard shackles are forged with 45 steel, and the cross pins are made of 40cr Table treatment.
Generally, they are galvanized or painted.

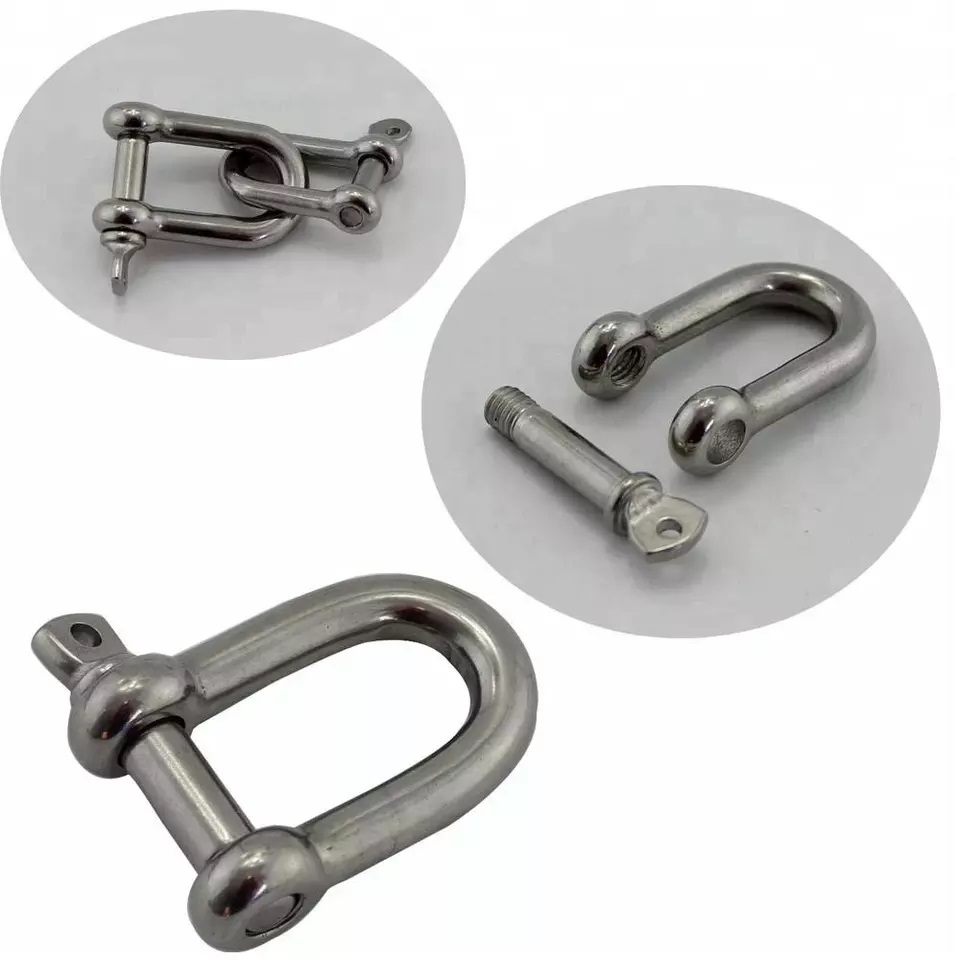

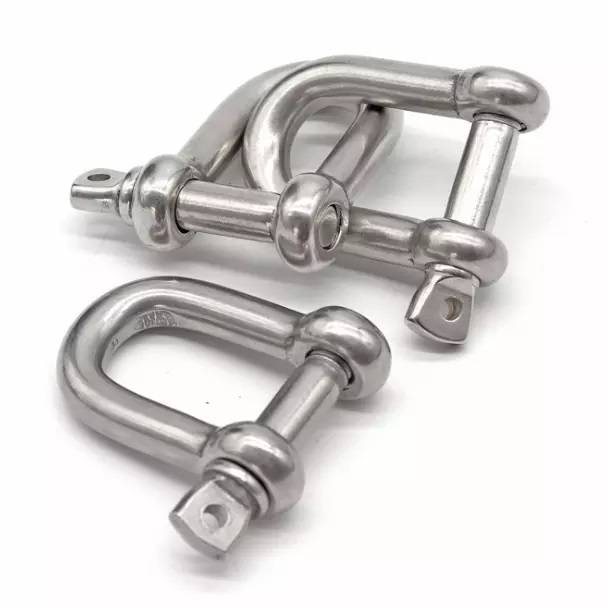

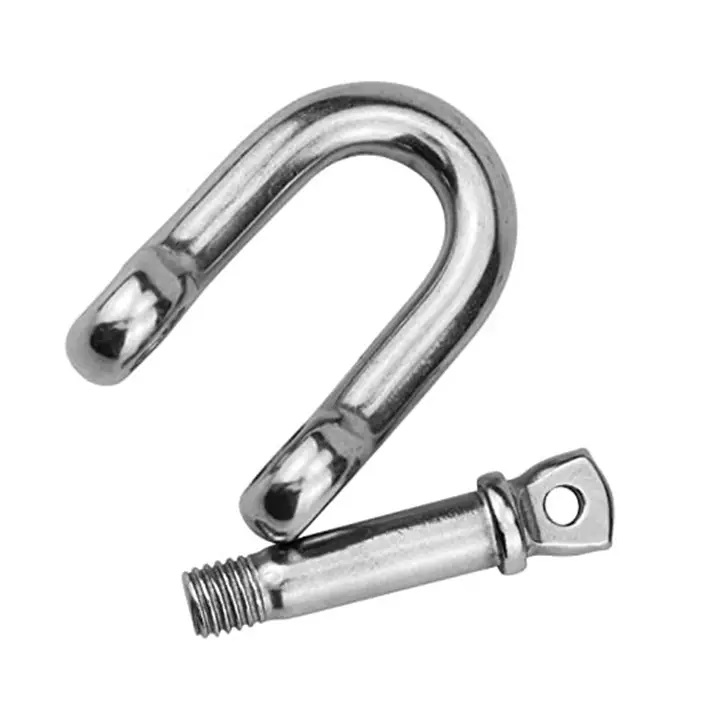

| Item | Heavy Load Safety M4 Stainless Steel Adjustable bow Lifting Chain D Anchor Bolt Shackle | |||
| Finish | polished | |||
| Measurement system | Metric, Imperial (Inch) | |||
| Application | Heavy Industry, Mining, Retail Industry, General Industry, Oil & Gas, Automotive Industry | |||
Material | Stainless Steel 304 or 316 | |||
Standard | DIN | |||
Brand name | Zhuocheng | |||
WLL(working load limits kg) | 60, 80,100,200,320,520,700,800,950,1100,1500,2100,3000 | |||

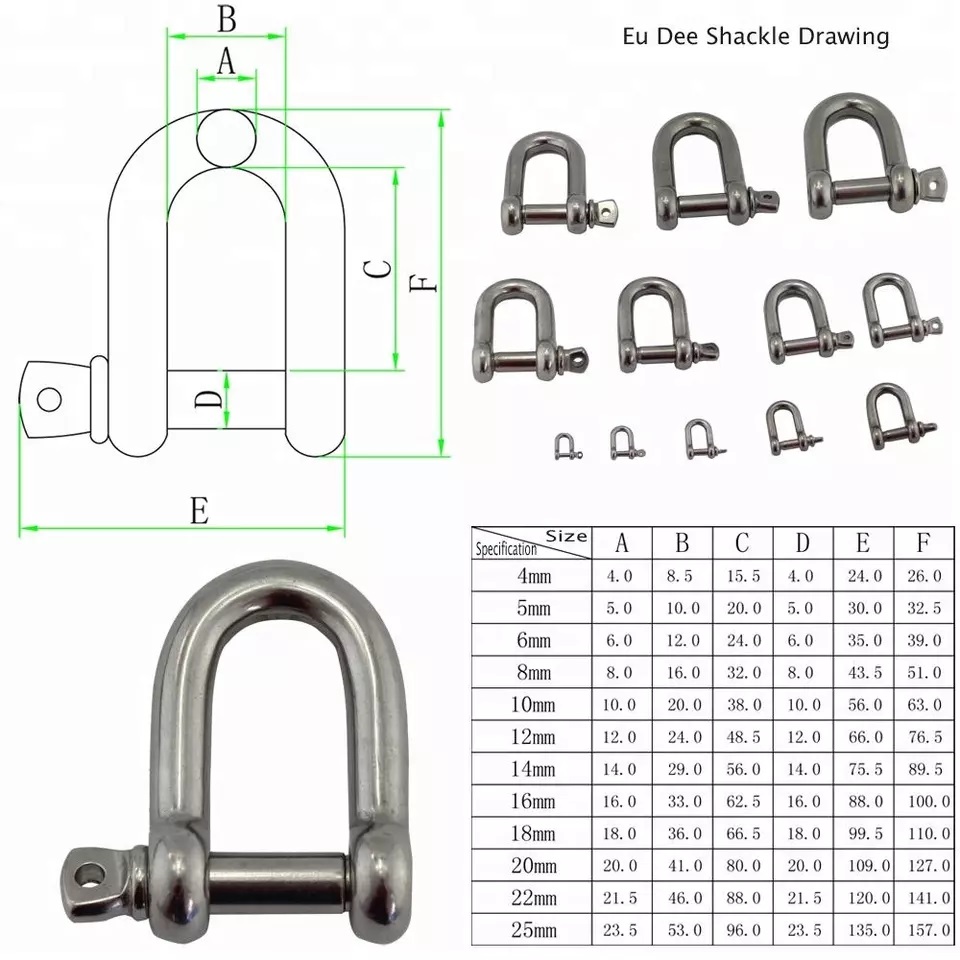

Size | 4mm,5mm,6mm,8mm,10mm,12mm,14mm,16mm,18mm,20mm,22mm,24mm,28mm | |||
Certificate | ISO9001-2008 | |||
Customization | Provided | |||
Service | Provided | |||
Single packaging size | 25*25*16CM | |||
Singe gross weight | 25kg | |||
Package type | carton+plastic bags | |||
(1)Small box packging | ||||
(2)25-30kgs/ctn in bulk, 36-48cartons/pallet | ||||
(3)Assortment in poly bag or plastic box | ||||
Delivery time | Quantity | Delivery time | ||
1-1000pcs | 3 days | |||
1001-5000pcs | 7 days | |||
5001-10000pcs | 9 days | |||
＞10000pcs | To be negotiated | |||
