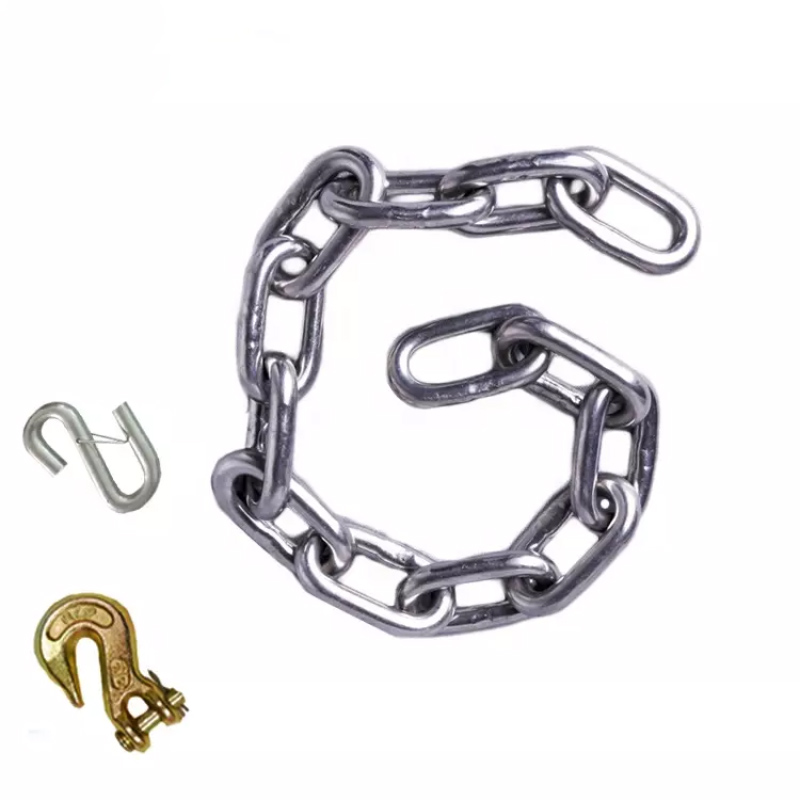

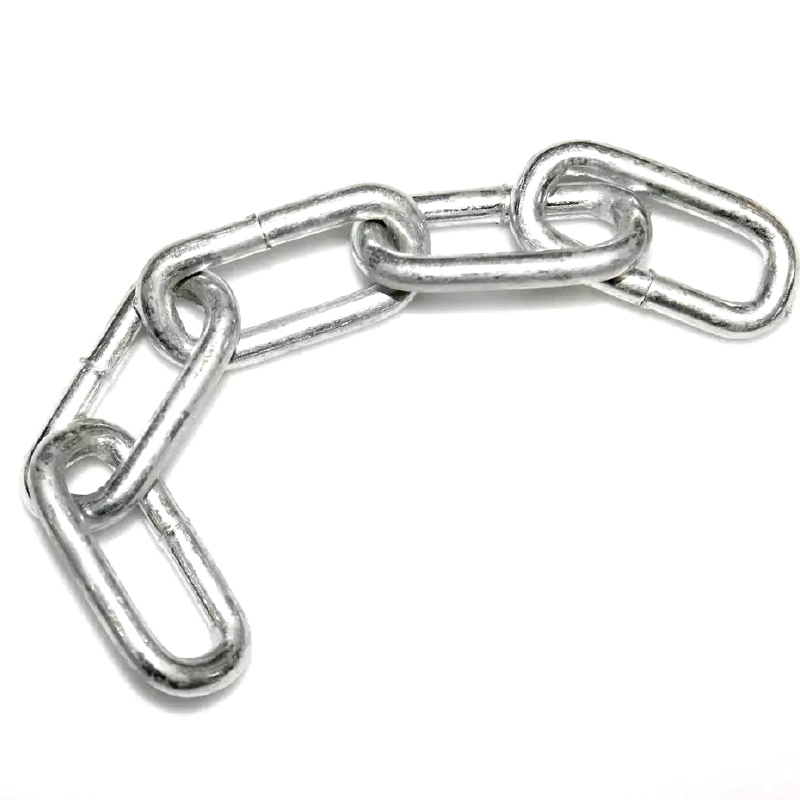

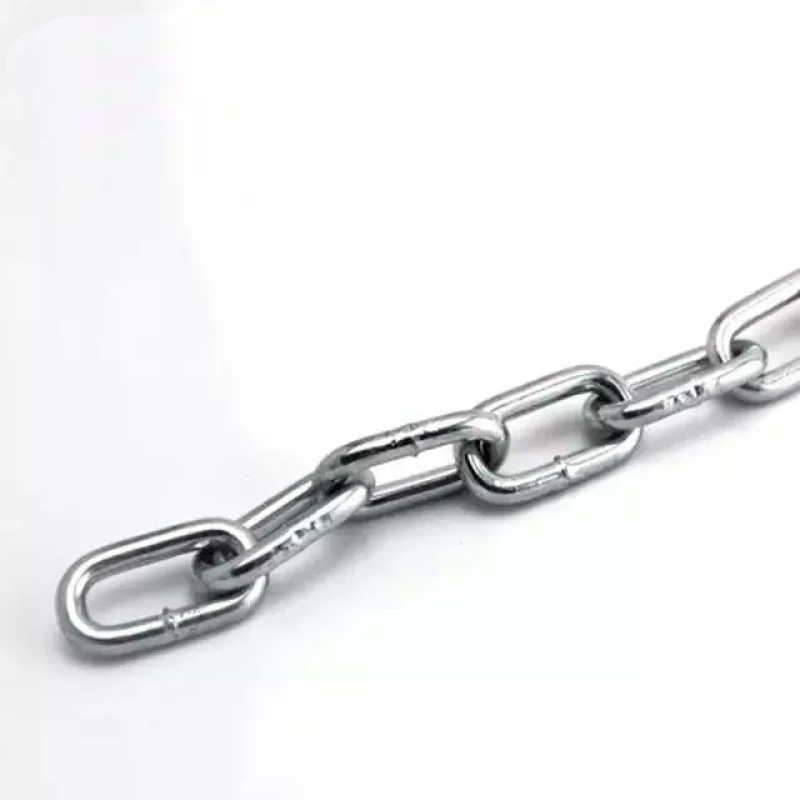

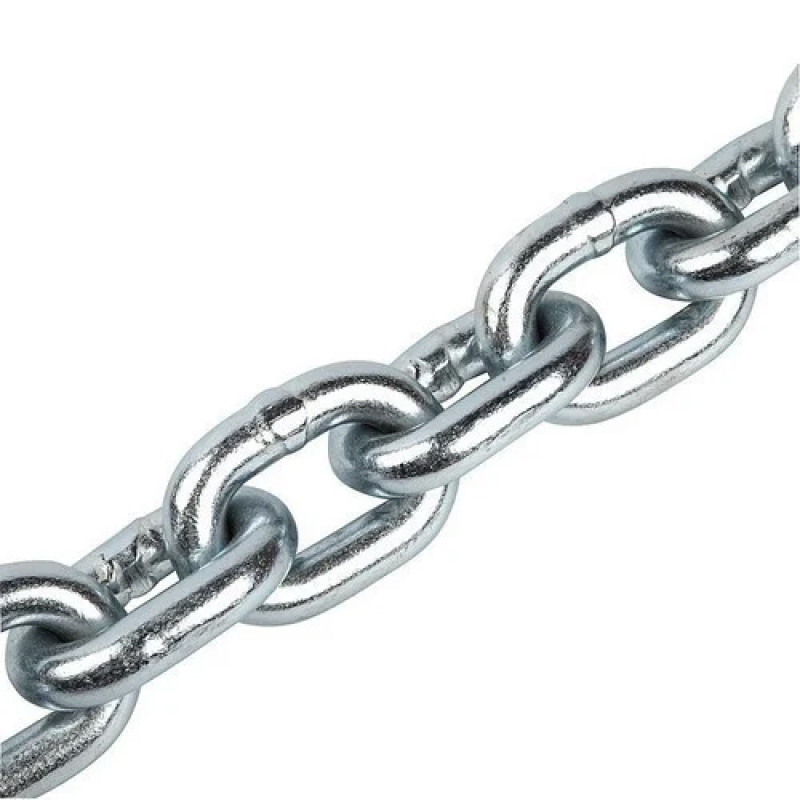

The lifting chain is an essential and important lifting device of the crane. The length of the chain can be adjusted according to the lifting height of the crane. It plays an important role in improving the operating efficiency of the crane and expanding the operating range of the crane. The allowable wear value of the lifting chain shall not exceed 10% of the bar diameter of the ring chain or the thickness of the auxiliary tools. From the plane where the main ring is not bent, the main ring shall be scrapped if it is twisted more than 10 degrees. It is forbidden to use the lifting chain if cracks, bending or twisting occur at any part of the lifting chain and there are stuck or stiff resistance between the ring hinges, which cannot be eliminated. The sexual elongation of the lifting chain and the single ring shall not exceed 5% of the original length. The lifting chain includes short ring chain, lifting chain, etc. Use 8 grade ordinary precision chain, welded lifting chain, non-standard lifting circular chain, and high-strength circular chain. The lifting chain is divided into M4, P5, S6, T8 and V10 series according to the mechanical properties of the finished chain. The grades are G30, G50, g80, G100, etc., and the materials are mainly carbon steel and stainless steel. Grade g80 and G100 lifting chains are made of high-quality synthetic steel (manganese steel, etc.) and applied to: strength correction chain, non correction chain, binding chain and hoist special chain; The surface is treated with natural color, polishing, blackening, painting, hot dipping and galvanizing, and the safety factor is 4 times, 5 times, 6 times and 2.5 times of the experimental load.
| Model number | DIN 766, DIN5685 | |||
| Finish | Zinc | |||
| Measurement system | Metric, Imperial (Inch) | |||
| Application | Ship, iron and steel industry, petroleum chemical industry, coal mine | |||
Material | carbon steel, alloy steel, stainless steel | |||
Standard | Can provide meet DIN,NACM,BS JIS and other standards ring chains and user requirements nonstard ring chain | |||
Brand name | Zhuocheng | |||
Surface | hot-dip zinc,dacromet,metal coated,Blacken,Carburiation, oil and various surface treatments on the chain | |||
Size | 6mm | |||
Certificate | ISO9001-2008 | |||
Customization | Provided | |||
Service | Provided | |||
Single packaging size | 25*25*16CM | |||
Singe gross weight | 25kg | |||
Package type | carton+plastic bags | |||
(1)Small box packging | ||||
(2)25-30kgs/ctn in bulk, 36-48cartons/pallet | ||||
(3)Assortment in poly bag or plastic box | ||||
Delivery time | Quantity | Delivery time | ||
1-1000pcs | 3 days | |||
1001-5000pcs | 7 days | |||
5001-10000pcs | 9 days | |||
＞10000pcs | To be negotiated | |||
Wuxi Zhuocheng Mechanical Components Co., Ltd. is established in 1993, and one group of manufacturing and selling professional fastener , and often make DIN, ANSI, BS, ISO, JIS standard and high quality and professional fastener products in industrial fields, also have a professional quality control in development, process and manufacturing of various non-standard fastener. At present we develop 10,000 kinds of non-standard fasteners. We have a long-term business cooperation relationship with many well-known multinational companies, and provide an OEM service for the middle- big business enterprise. The products have already exported to the Unite States, Germany, England, Canada, Italy, Japanese etc.
Low MOQ
Good Price
CAD And 3D Design
Customized Service
OEM Service
ODM Service
ISO9001 Certificate
One-stop Service
Stable Product Quality
One-year Warranty
