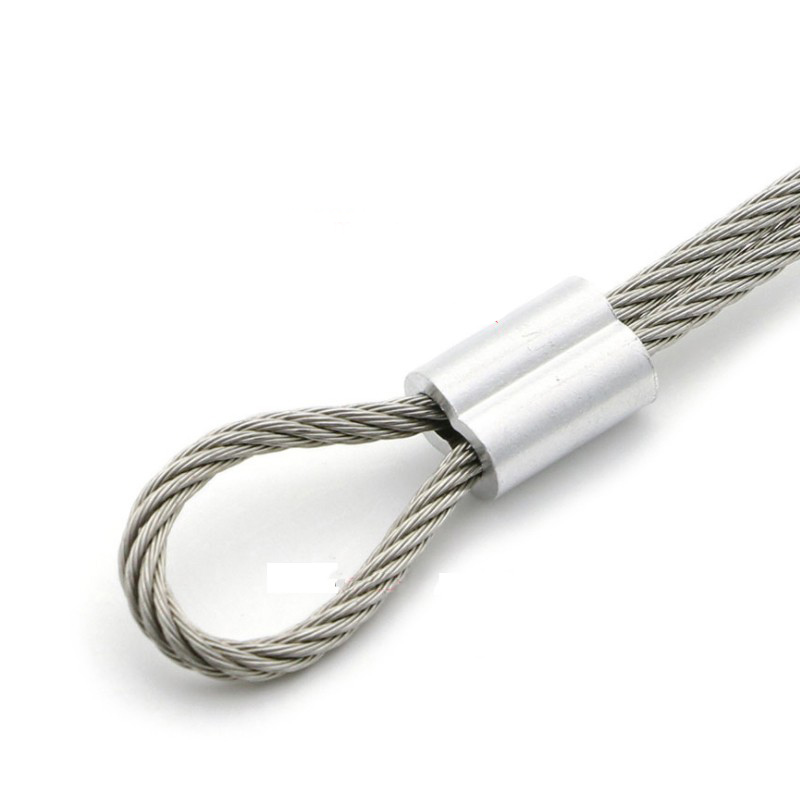

The wire rope ferrule is generally made of copper, aluminum and stainless steel, to prevent the head of the steel wire rope from being loose. After the steel wire rope is cut, put the ferrule on the head of the steel wire rope and use the press to squeeze the aluminum sleeve tightly, so that the head of the steel wire rope will not be loose. When using the steel wire rope buckle, tighten the U-bolt until the steel wire rope is flattened by about 1/3.
As the steel wire rope is deformed after being stressed, the rope clamp shall be tightened for the second time after the steel wire rope is stressed to ensure the stability of the joint. If it is necessary to check whether the rope clamp slides after the steel wire rope is stressed, it can be carried out by adding a safety rope clamp. The safety rope clamp shall be installed about 500mm away from the last rope clamp. The rope head shall be released for a section of safety bend and then clamped with the main rope. In this way, if the clamp slides, the safety bend will be straightened, so that it can be found at any time and reinforced in time.
The size of the clip shall be suitable for the thickness of the steel wire rope. The inner clear distance of the U-ring shall be 1 ~ 3mm larger than the diameter of the steel wire rope. The clear distance is too large to clamp the rope.

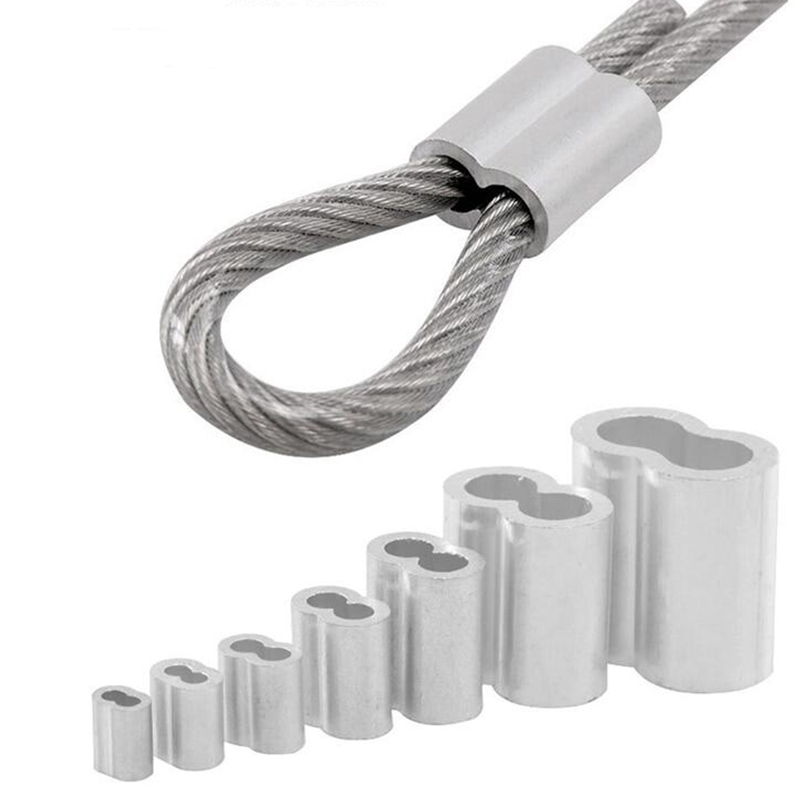

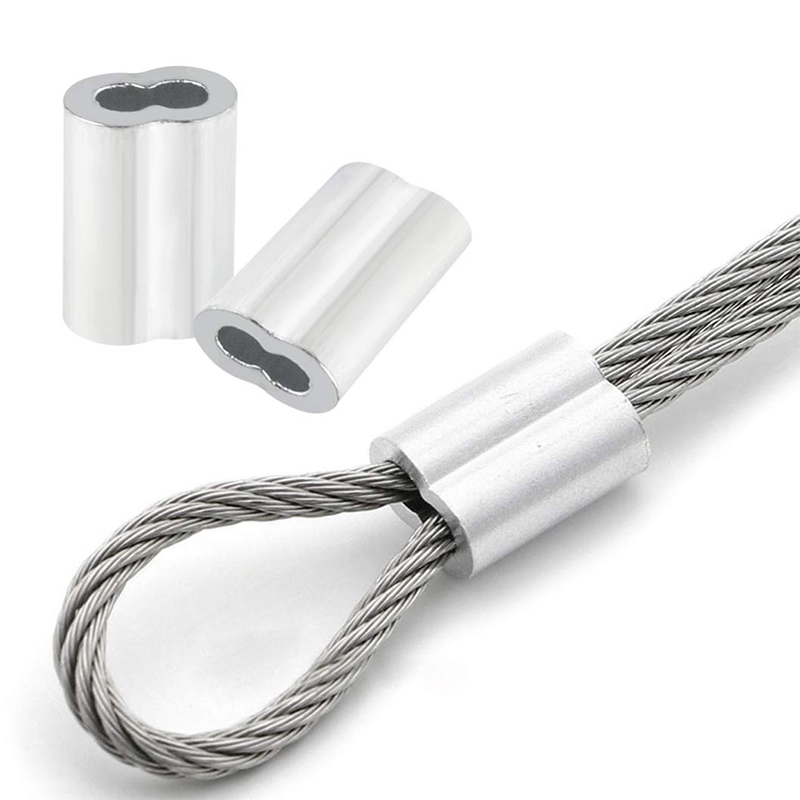

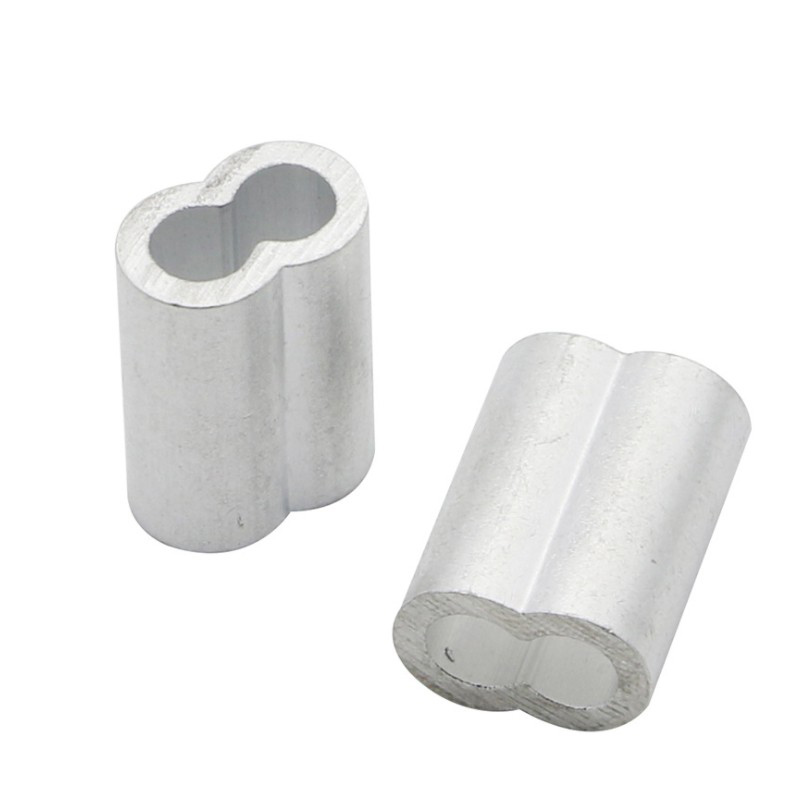

| Item | aluminum ferrule oval double hole hourglass shape ferrules for wire rope sling ferrule | |||
| Finish | ZINC PLATED | |||
| Measurement system | Metric, Imperial (Inch) | |||
| Application | Lifting and connecting, Wire rope fittings | |||
Material | carbon steel, alloy steel, stainless steel | |||
Standard | DIN | |||
Brand name | Zhuocheng | |||
Surface | Plain, ZincPlated(Clear/Blue/Yellow/Black), black oxide, HDG | |||
Size | M3-M72(3/16''- 4'') | |||
Certificate | ISO9001-2008 | |||
Customization | Provided | |||
Service | Provided | |||
Single packaging size | 25*25*16CM | |||
Singe gross weight | 25kg | |||
Package type | carton+plastic bags | |||
(1)Small box packging | ||||
(2)25-30kgs/ctn in bulk, 36-48cartons/pallet | ||||
(3)Assortment in poly bag or plastic box | ||||
Delivery time | Quantity | Delivery time | ||
1-1000pcs | 3 days | |||
1001-5000pcs | 7 days | |||
5001-10000pcs | 9 days | |||
＞10000pcs | To be negotiated | |||
Wuxi Zhuocheng Mechanical Components Co., Ltd. is established in 1993, and one group of manufacturing and selling professional fastener , and often make DIN, ANSI, BS, ISO, JIS standard and high quality and professional fastener products in industrial fields, also have a professional quality control in development, process and manufacturing of various non-standard fastener. At present we develop 10,000 kinds of non-standard fasteners. We have a long-term business cooperation relationship with many well-known multinational companies, and provide an OEM service for the middle- big business enterprise. The products have already exported to the Unite States, Germany, England, Canada, Italy, Japanese etc.
Low MOQ
Good Price
CAD And 3D Design
Customized Service
OEM Service
ODM Service
ISO9001 Certificate
One-stop Service
Stable Product Quality
One-year Warranty
◉ You are a manufacturing company or trading company?
---We are a metal alloy manufacturing and we have years of export experience. we have a reasonable price.
◉ What quote do you offer?
---FOB , CIF and others ways according to your needs.
◉ How pay?
---All of kinds Payment we all accept from you
◉ How transport?
---Sea Freight, Air Freight and others Express Delivery ways for you.
◉ Can I order a small list?
---Of course,you can.
◉ Can we print our own logo?
---Yes, we can print logo for you.
◉ What is the quality of your products guarantee?
---We have passed ISO9001:2008 Quality Management System Certification, CQM Quality Management System Certification and IQNet Quality Management System Certification, If the quality doesn't accord with the standard, you can exchange the goods for free.
◉ Do you have after-sales service?
---Certainly,you can contact us at any time. Contacting info: You can contact with us by email
Take advantage of our unrivaled knowledge and experience, we offer you the best customization service.
If You Have More Questions, Write To Us
Just leave your email or phone number on the contact form so we can provide you with more services!
They are all manufactured according to the strictest international standards. Our products have received favor from both domestic and foreign markets.
They are now widely exporting to 200 countries.
Wuxi Zhuocheng Mechanical Components Co., Ltd. is established in 1990, and one group of manufacturing and selling professional fastener
