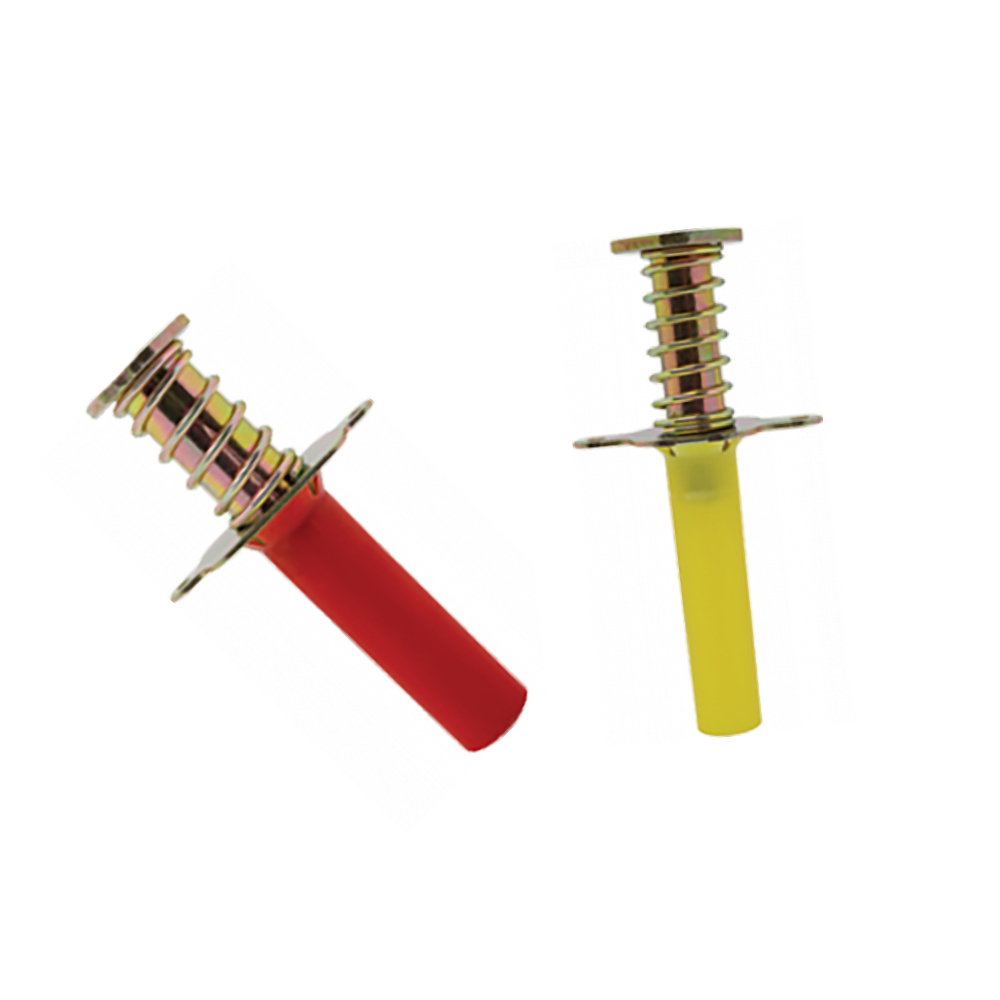

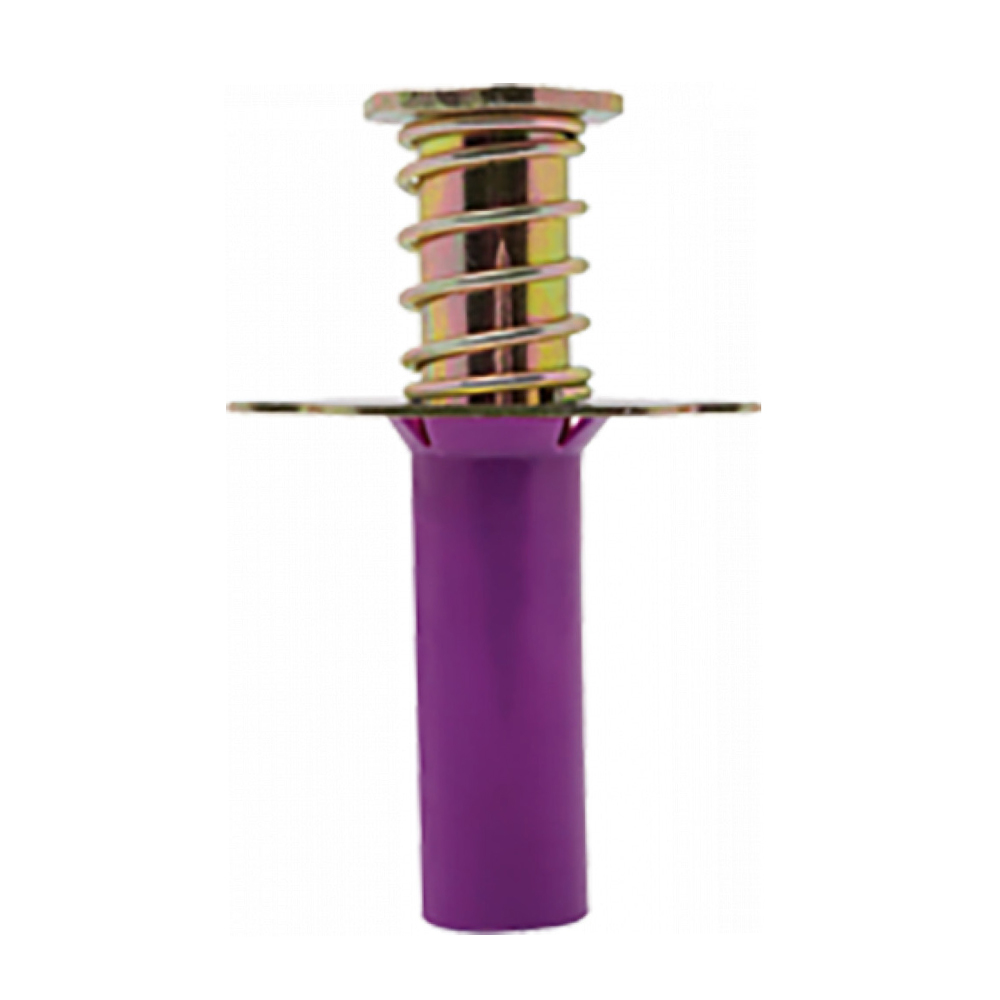

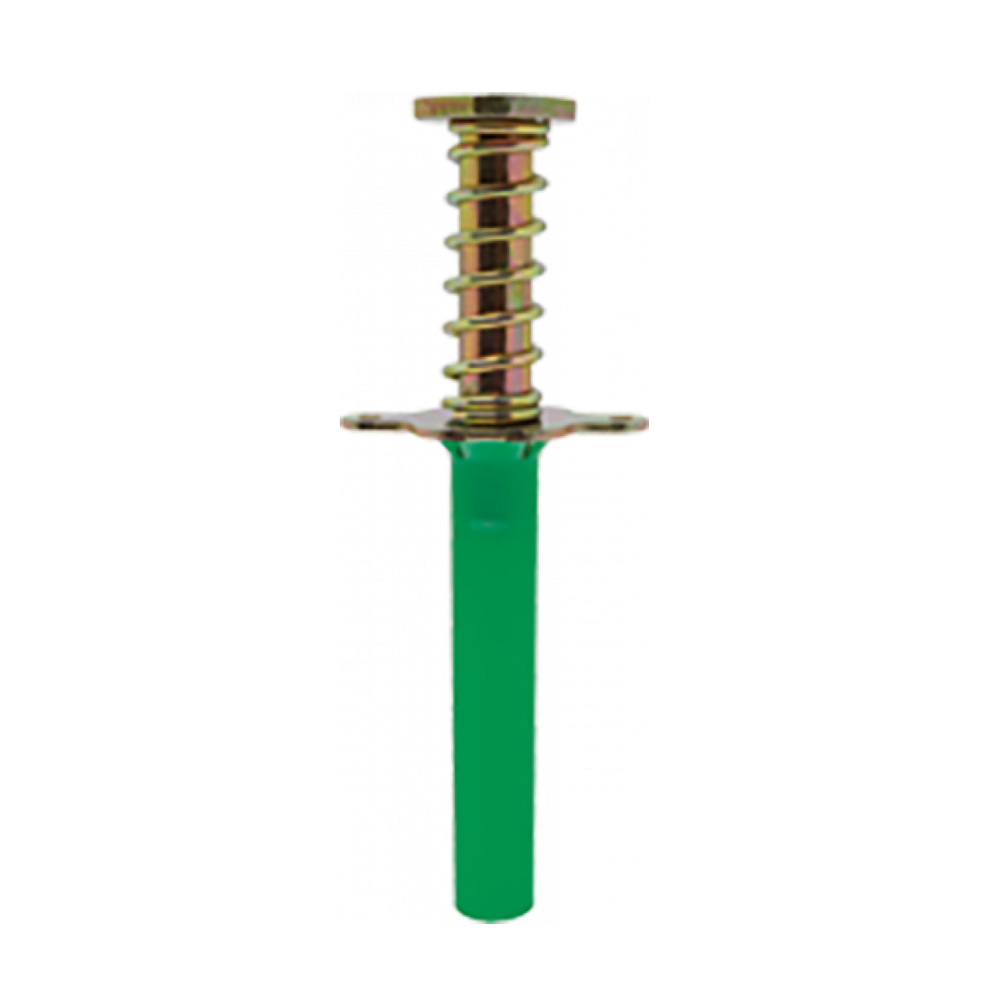

Inserts can be installed in upper and lower steel deck profiles with limited concrete topping thickness. Concrete inserts are designed for installation in and through composite steel deck (i.e. “pan-deck”) used to support newly poured concrete floors or roof slabs. After installation, the protective sleeve of the insert protrudes below the surface of the deck. The sleeves are color-coded by size and allow overhead attachment of steel threaded rod in sizes ranging from 1/4 to 3/4 in diameter. The sleeve prevents sprayed fireproofing material and acoustical dampening products from clogging the internal threads of the insert. It also prevents burying, masking or losing the insert location. A hex impact plate offers resistance to rotation within the concrete as a steel threaded rod is being installed.
| Item | Concrete Insert Anchors | |
| Application | Conduit and Lighting System; Hanging Pipe and Sprinkler Systems; HVAC Ductwork and Strut Channels; Mechanical Unit Overhead Utilities; Seismic Loading and Cracked Concrete; Suspending Trapeze and Cable Trays | |
| Rod hanger type | Vertical | |

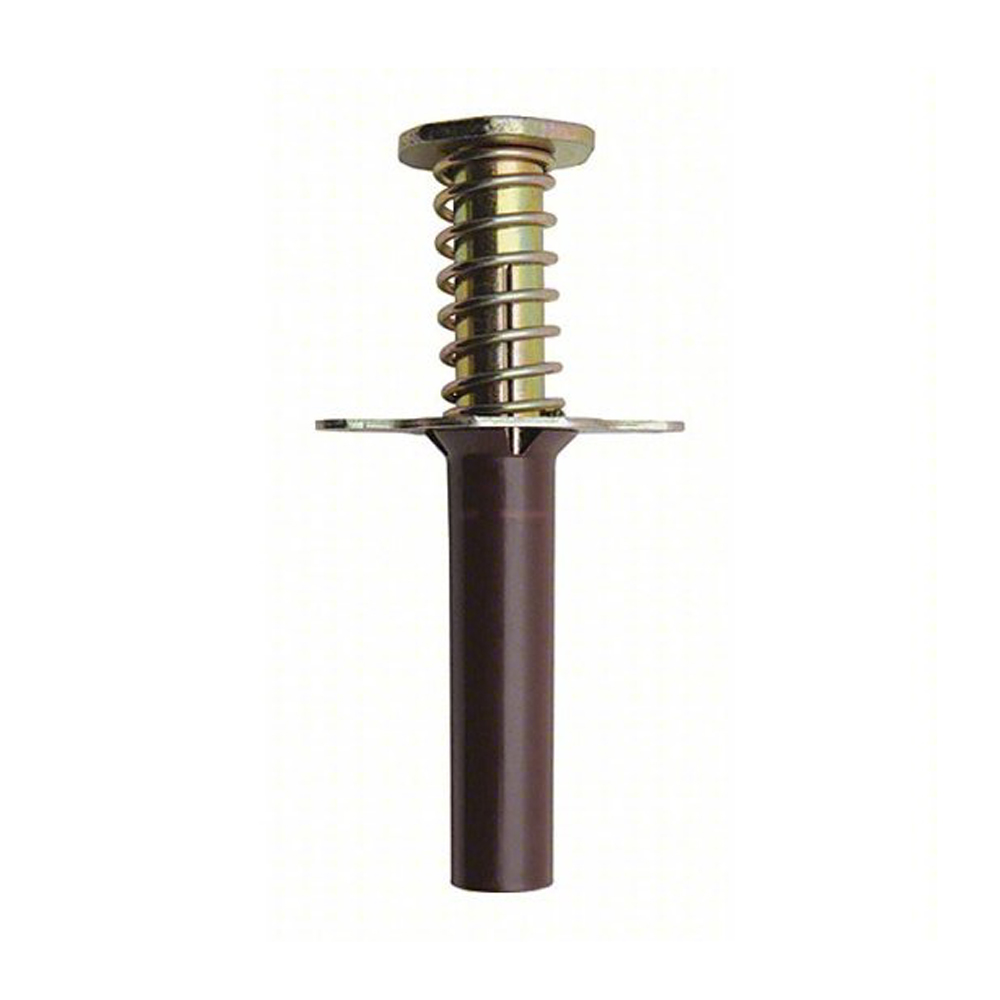

| Color | Brown | |
| Finish | Zinc Plated | |
| System of measurement | Metric, inch | |
| Anchor Material | Carbon Steel/Plastic | |
| Screw size | 1/4"-20 | |
| Shank Length | 3-3/8 in | |
| Rod Size - Hangers | 1/4"-20 | |
| Head Dia. | 1/4 in | |
| Drill Size | 13/16 in | |
| Certificate | ISO9001-2008 | |
| Customization | Provided | |
| Single packaging size | 25*25*16cm | |
| Singe gross weight | 25kg | |
| Sample | Free | |
| Packing | Carton+plastic bags | |
| (1) Small box packging | ||
| (2) 25-30kgs/ctn in bulk, 36-48cartons/pallet | ||
| (3) Assortment in poly bag or plastic box | ||
| Delivery time | Quantity | Delivery time |
| 1-1000pcs | 3 days | |
| 1001-5000pcs | 7 days | |
| 5001-10000pcs | 9 days | |
| ＞10000pcs | To be negotiated | |
